ZH-WFT

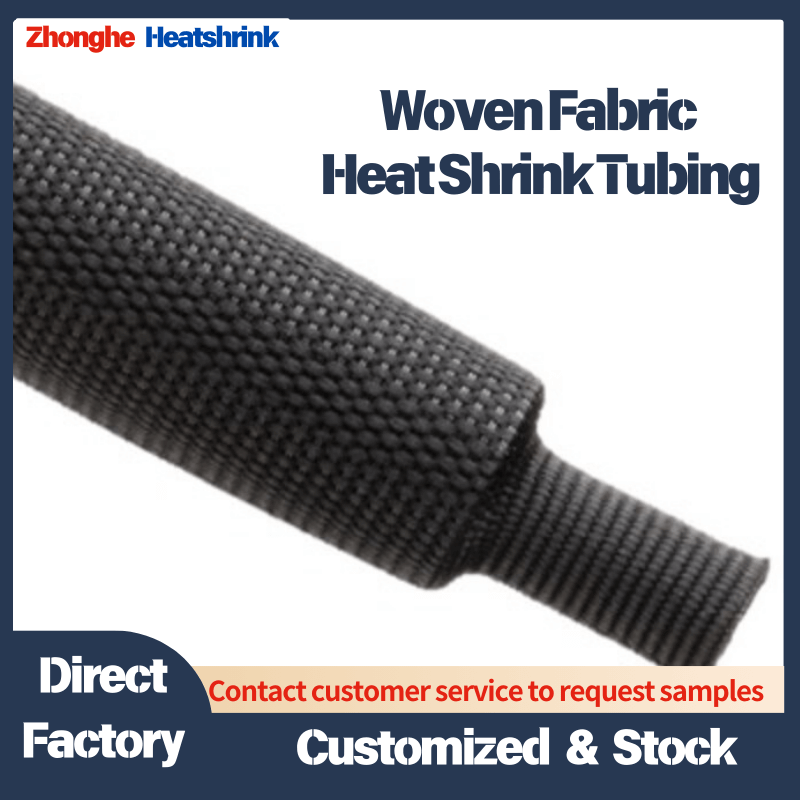

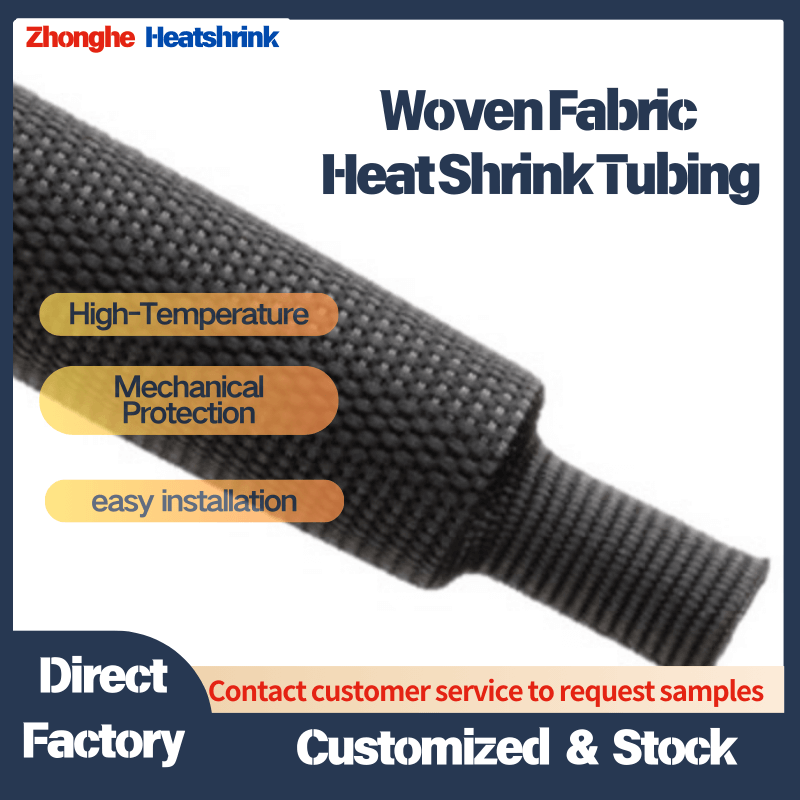

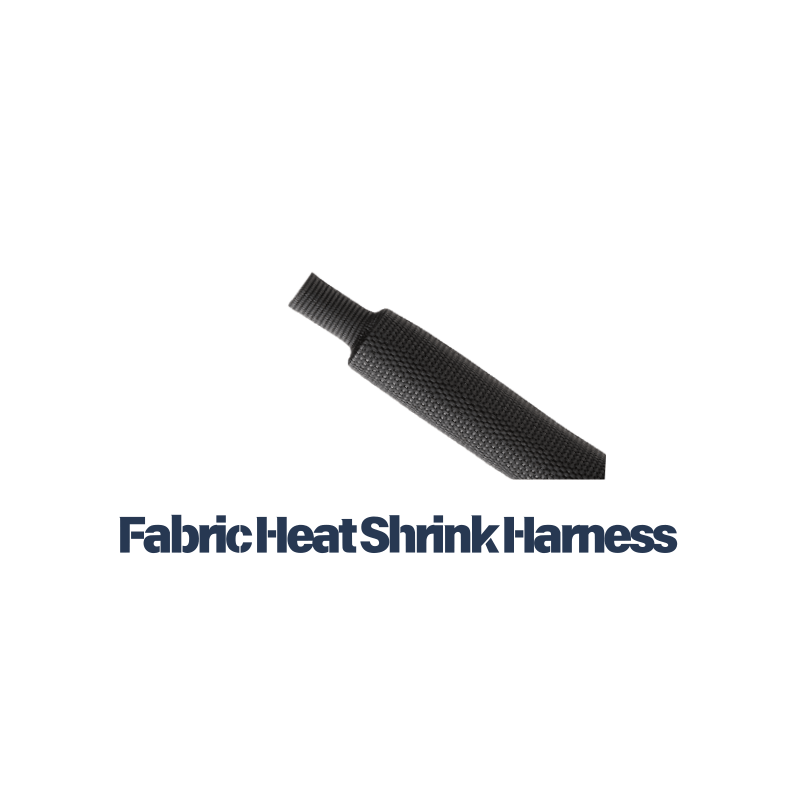

Woven Fabric Heat Shrink Sleeve
It is an abrasion-resistant protective solution for automotive hoses and wiring harnesses. The woven PET outer layer provides strong wear protection, while the cross-linked polyolefin inner layer enables secure shrinking and stable coverage. It also helps reduce vibration and noise in dynamic environments.
Features and benefits
- Effectively reduces vibration noise
- Excellent thermal stability
- Protective coating enhances durability
- Multiple sizes available
- Cost-effective manufacturing
- 15m standard packing
Description
ZH-WFT Series is an abrasion-resistant woven heat shrink sleeve made of PET fiber and irradiation cross-linked polyolefin, specially designed for automotive hose protection. With excellent vibration damping and noise reduction, Abrasion-resistant woven heat shrink sleeve for hose and harness protection.Vibration damping, TL 52668 abrasion performance, -40°C to 125°C. Sizes Φ6–Φ90 mm.
Key Features
- Strong abrasion protection for hoses and harnesses
- Vibration damping to reduce noise in automotive routing
- Heat shrink fit for secure positioning
- Cost-effective for mass production programs
Specifications

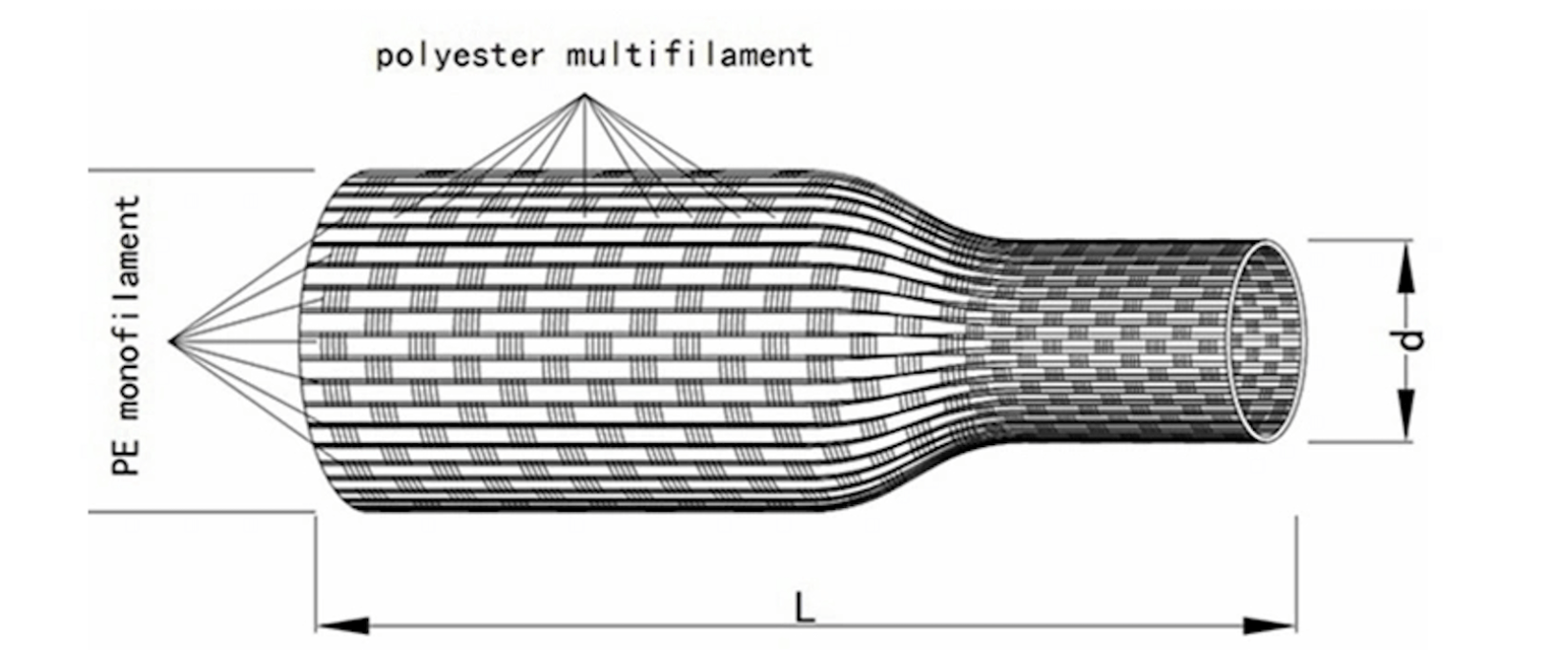

- Construction: PET woven outer + irradiated cross-linked polyolefin inner
- Shrink ratio: 2:1
- Operating temperature: -40°C to 125°C
- Color: black
- Size range: Φ6.0–Φ90.0 mm
- Abrasion standard reference: TL 52668 (add test method/grade if you have it)
- Chemical resistance: passes (list chemicals if possible)

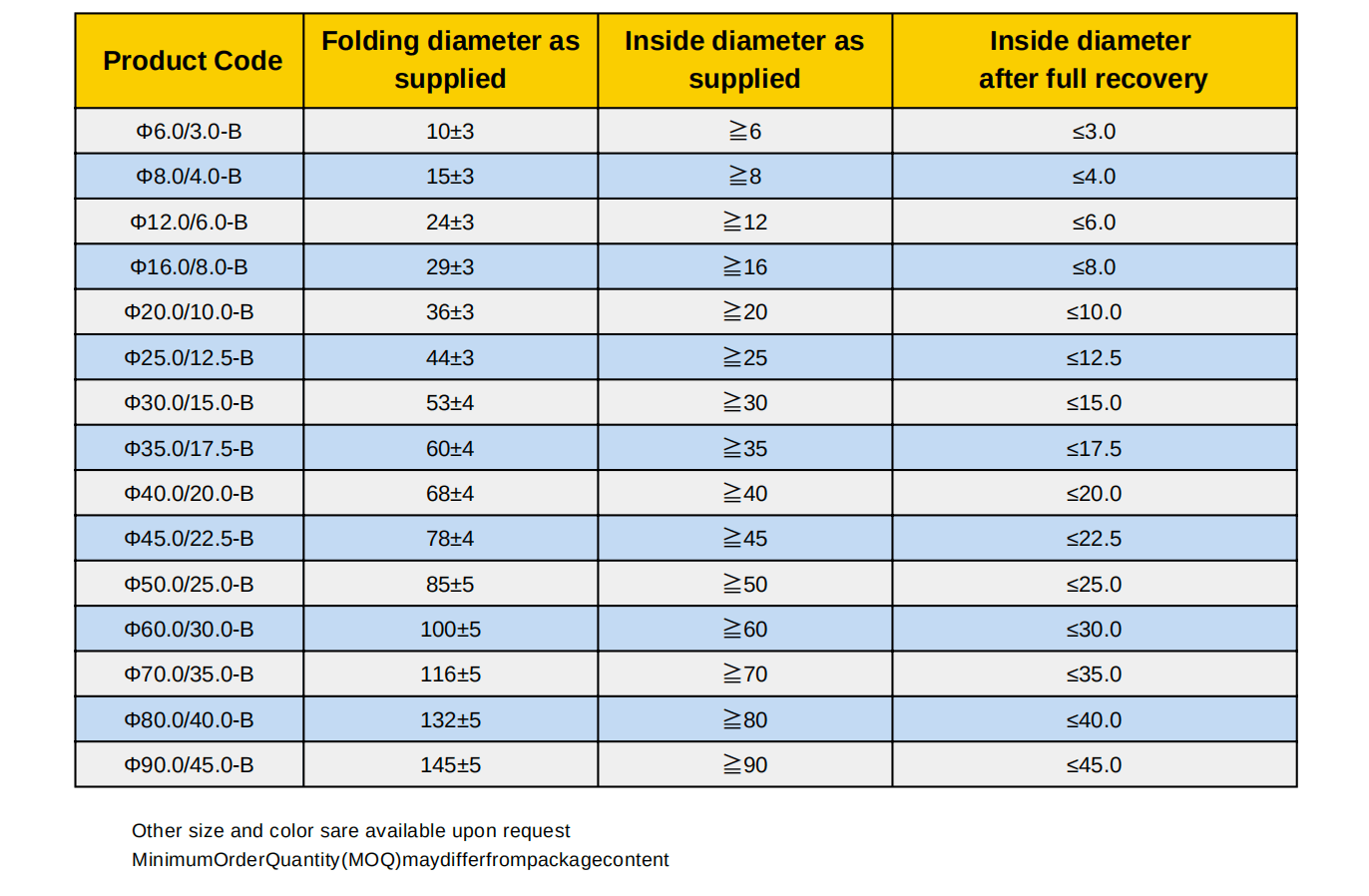

Size:
Applications
- Automotive hose protection
- Engine bay harness routing
- Industrial cable bundling exposed to wear points
FAQ:
Q1: Is this a braided PET sleeving or a woven fabric heat shrink sleeve?
It is a woven fabric heat shrink sleeve. The woven PET outer layer provides abrasion protection, and the inner heat shrink layer helps it stay securely in place.
Q2: Can it reduce vibration noise?
Yes. The fabric structure and tight shrink fit help damp vibration and reduce noise in routing.
Q3: What temperature range does it support?
Typical operating range is -40°C to 125°C. Please contact us if you need higher temperature solutions.
Q4: How do I choose the correct size?
Send us your hose/harness OD range and the installation constraints. We will recommend the suitable size.
