ZH-FEP

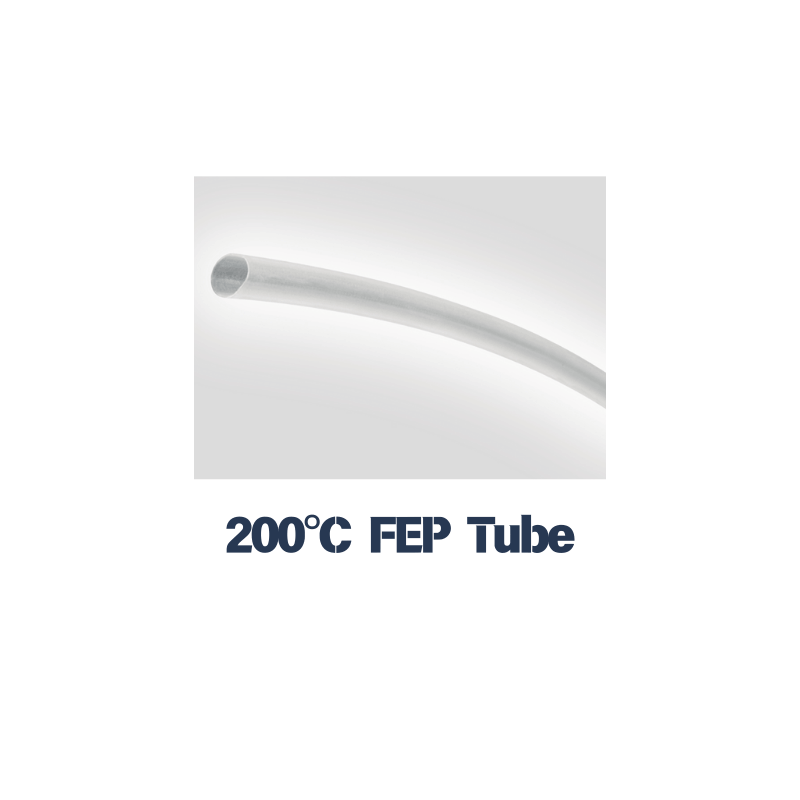

200°C FEP Heat Shrink Tubing
It is a 200°C high-temperature FEP heat shrink tubing made of fluorinated ethylene propylene (FEP) material, featuring exceptional chemical and solvent resistance.
Features and benefits
- Superior chemical/solvent resistance
- Wide temperature range (-65°C to +200°C)
- Low friction protects precision components
- Multiple sizes available (Φ2.5-Φ120mm)
- Cost-effective with fast delivery
- Ideal for high-tech electronics industry
Description
High temperature FEP tubing is a fluoropolymer insulation solution designed for cable, lead wire, and component protection in harsh environments. It offers strong chemical resistance, transparency options, and dependable performance where heat, fluid exposure, and long-term electrical reliability matter.
Key Features:
- 200°C continuous rating (220°C peak)
- Ultra-thin wall (0.2-0.6mm) design
- Self-extinguishing within 15 seconds
- 600V insulation, 12.7kV/mm dielectric
- Standard transparent color
- SAE AMS-DTL-23053/11 certified

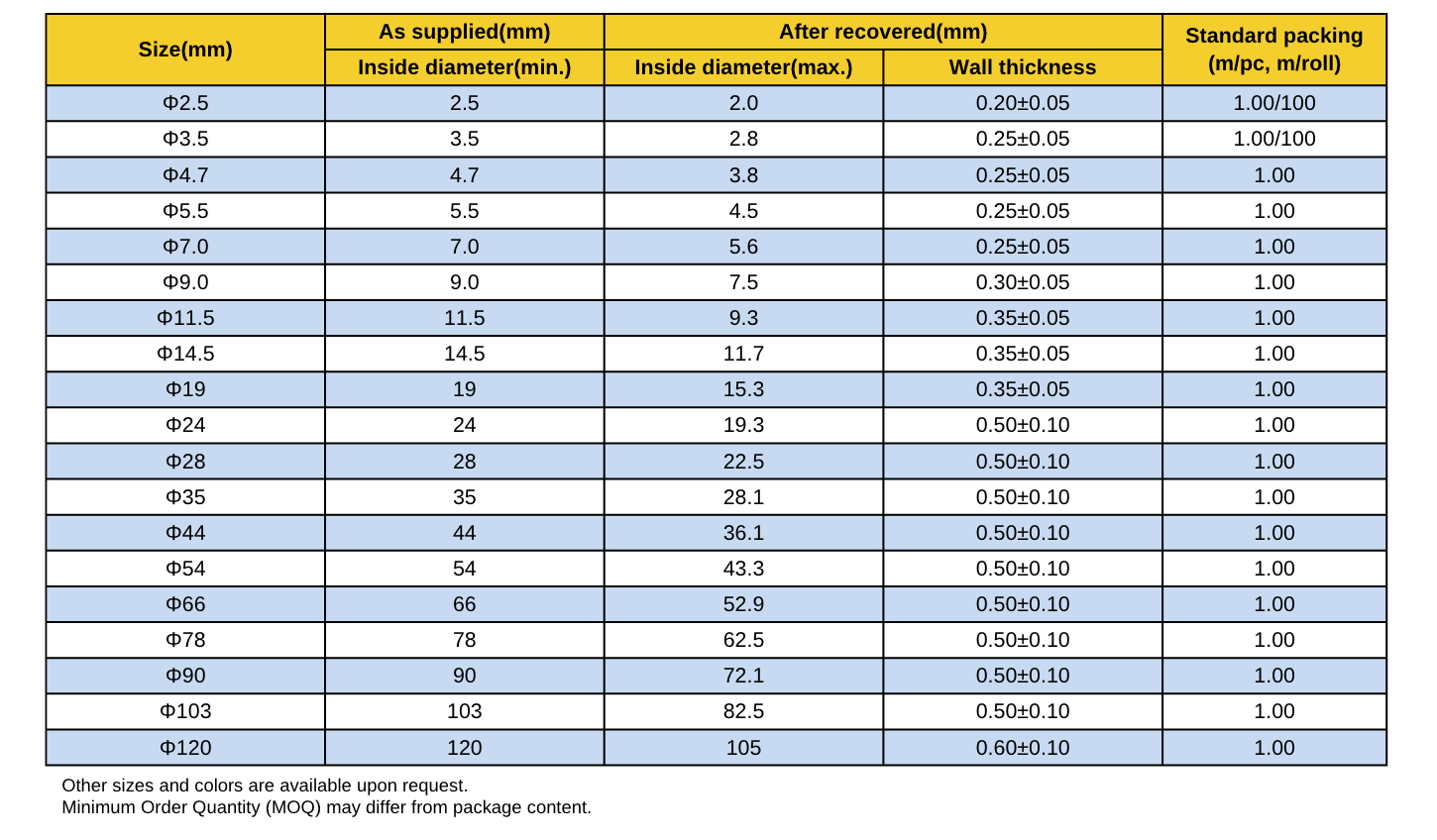

Size:
FAQ:
1) What is high temperature FEP tubing used for?
A: It is used for high-temperature insulation, chemical resistance, and protection of wires and components in harsh environments.
2) How is FEP different from PTFE tubing?
A: FEP and PTFE are both fluoropolymers, but FEP is often chosen when transparency, processability, or specific installation characteristics are important.
3) Is FEP tubing suitable for wire harness applications?
A: Yes. FEP tubing is widely used in aerospace, defense, industrial, and high-performance harness assemblies.
4) Can you provide custom sizes and colors?
A: Yes. Size, wall thickness, and supply format can usually be matched to project requirements, subject to production feasibility.
